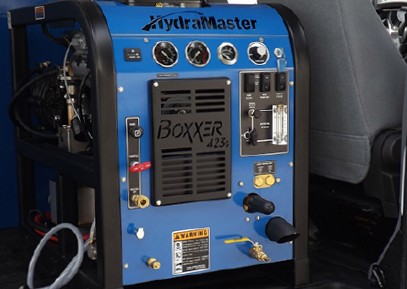

The Perfect Balance of Power and Simplicity
More Power: 23 HP Air Cooled Engine – Briggs & Stratton® Vanguard™ Air Cooled Engine.
Quieter Performance: Opti-Air® Flow System – Reduces noise resulting in the quietest machine in its class.
Patented Heat Control System – ADC Control Diverter valve manages heat for more consistent temperature delivery and far less water dumping.
Compact Opti-Air® Flow System – Reduces noise resulting in the quietest machine in its class.
Simpler Maintenance – “Arms-length” design and removable panels allow easy access to crucial components and serviceable parts, including the heat exchanger.
Quieter Performance Vacuum – Helical gear splash lube tri-lobe blower produces 350+ CFM resulting in faster drying carpet and floors.
• Perfect balance of power and price
• Based on the proven track record of the industry’s top selling truckmount
• More power through increased engine horsepower
• 235°F Maximum Temperature
• Compact design maximizes available floor space in van
• Improved serviceability by providing easier accessibility to crucial components
• OPTI-AIR™ flow system makes the machine quieter
• Heat control system provides for less water usage (reduced bypass dumping) and more consistent temperature performance during intermittent wand use
• Dimensions: 24″W x 32″H x 36″D
• Weight: 563 lbs
• Engine: 23 HP Briggs & Stratton V-Twin Vanguard industrial series engine
• Ignition: Electric key start
• Vacuum Blower: 4005 Dominator™ Tri-Lobe blower, HydraMaster Exclusive
• Design, 300+ cfm, dual oil bath oil design with sight level windows
• Pump: 4.0gpm plunger pump, 1,000 operating psi, electric clutch control
• Max Temp: 235ºF
• Chemical System: Stainless steel last-step chemical injection, meter controlled
• Heating System: Finned tube heat exchanger
• Recovery Tank: 70 gallon MaxAir™ recovery tank; aluminum, baked on powder coated finish, includes stainless steel filter and filter basket. 36 1/2″L x 10 1/2″W x 31″H, 100 lbs
• Solution Hose Length: 100 ft x 1/4″
• Vacuum Hose Length: 100 ft x 2″
• Wand Capacity: Single
• Fuel Consumption: 1.1 gph
• Uses: Residential and Commercial
• Runtime hour meter
• Chemical flow meter (0-10 gph)
• Chemical flow control valve
• Vacuum gauge (0-30″ Hg)
• Solution pressure gauge (0 – 1,000 psi)
• Solution pressure adjustment
• Pre-wired pump-in switch
• Pre-wired AWDS/APO switch
• Fresh water inlet
• Water system drain valve
• Diagnostic/status lights
• Engine choke
• Engine throttle
• Electrical circuit protection (fuse protected)
• Solution temperature control selector
• Diverter valve (with ADC heat control)
• Diverter/clutch package for flood work
• Pump clutch switch
• Solution Hose Length: 100 ft x 1/4″
• Vacuum Hose Length: 100 ft x 2″
• Wand Whip Line: 10 ft x 1-1/2″
• 50 ft water supply line
• Recovery Tank: 70 gallon MaxxAir™ OR 100 gallon MaxxAir™
• Battery box
• Van installation kit
• Operation & maintenance manual |
